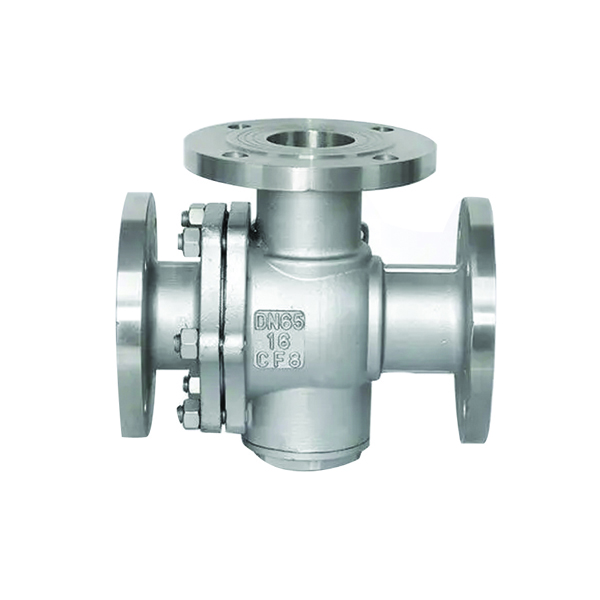

Ball Valve Q41F-16C/25

Ball Valve Q41F-16C/25

Application: This valve is suitable for use in pipelines carrying non-corrosive media such as water, steam and oil with a temperature not exceeding 150℃. It is used for opening and closing purposes. Its most prominent feature is the rapid opening and closing.

分类：

描述

Application: This valve is suitable for use in pipelines carrying non-corrosive media such as water, steam and oil with a temperature not exceeding 150℃. It is used for opening and closing purposes. Its most prominent feature is the rapid opening and closing.

Features

Working pressure: 1.6 – 2.5 MPa
Test pressure: 2.4 – 3.8 MPa (Strength: 1.8 – 2.8 MPa, Sealing)
Working temperature: -29 to 150℃

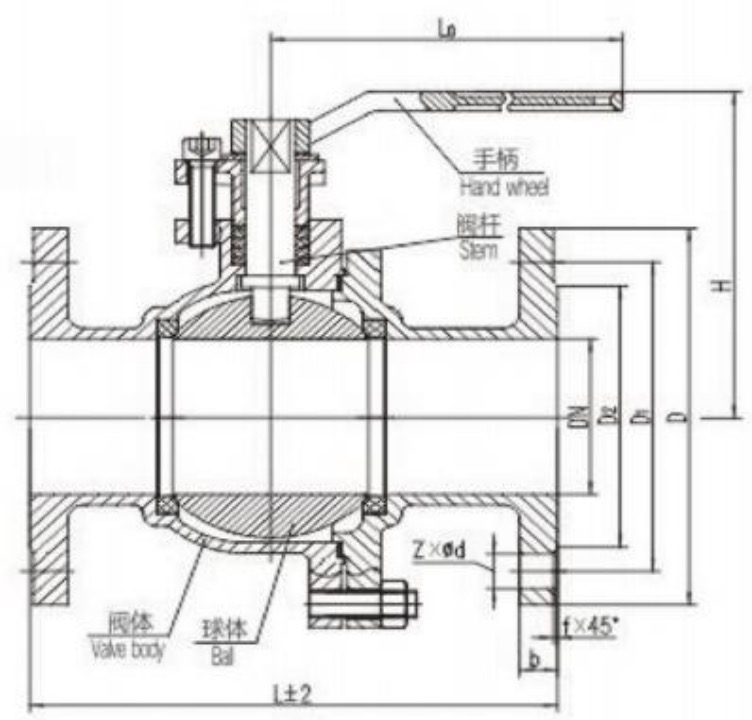

Dimensions                                                                                                 Unit:mm

MODEL DLAMETER L D D1 D2 b-f Z-φd (H) (Do)




















Q41F- 16C/25

 15 130 95 65 45 16-2 4-φ14 94 120
20 140 105 75 55 16-2 4-φ14 100 135
25 150 115 85 65 16-2 4-φ14 107 150
32 165 140 100 75 18-2 4-φ19 116 180
40 180 150 110 84 18-2 4-φ19 133 220
50 200 165 125 99 20-2 4-φ19 144 245
65 220 185 145 118 20/22-2 4-φ19 158 280
80 241 195/200 160 132/135 22/22-2 8-φ19 188 320
100 280 220/230 180/190 156/160 20/24-2 8-φ19 212 340
125 320 250/270 210/220 184/188 22/8-2 8-φ19 249 800
150 360 285/300 240/250 211/218 24/30-2 8-φ23 277 800
200 400 340/360 295/310 266/278 24-34-2 12-φ23 328 1100
